Normal / Right Hand

Normal character stamps, also known as “right hand stamps”, are read in a normal fashion.

Reverse / Left Hand

Reverse character stamps, also known as “left hand stamps”, are read in a reverse fashion.

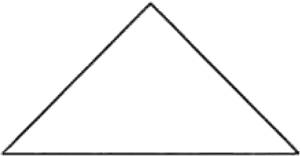

Sharp face steel stamps are general purpose stamps combining excellent legibility with strength and durability. Standard sharpness of the engraved face can range from a 60 to 90 degree included angle. Custom included angles are available upon request.

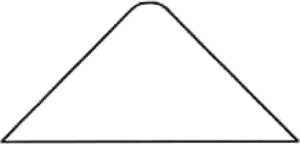

Low stress steel stamps are used in applications where minimum molecular deformation of a marked component is critical. The more forgiving radiused point of entry produces a very legible impression while simultaneously spreading the impact load and reducing the possibility of stress fractures in the molecular lattice of the metal. This profile continues to be a favorite choice of the aircraft/aerospace industry.

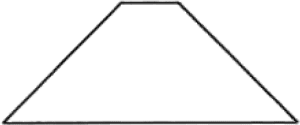

Flat face stamps have a blunt style profile which produces a shallower but wider character indentation. This wide character surface and increased character line weight are often useful if a post-marking process such as painting or powder coating is required.
