Achieve unparalleled precision and durability in industrial marking with Monode’s dot peen technology, designed to meet the rigorous standards of any application.
Monode revolutionized industrial marking with the first computer-controlled pin marker, continuously advancing with multi-axis and robotic technologies, including 2D data matrix barcoding. Dot peen marking, ideal for metals, plastics, and composites, uses a stylus for precise, low-stress alphanumeric characters or barcodes. Preferred in aerospace for flight-critical components, it’s also crucial in automotive and heavy industries.
Common Applications:

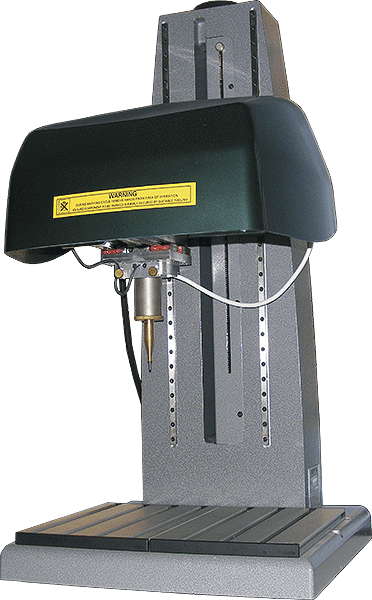

Robust, Economical Dot Peen Marking solutions for all industries. Electrically fired stylus provides dot repeatability over a large marking window with several speeds for mark quality management, all with 4 axis capabilities. Software interface or 7” color touchscreen to meet the needs and configuration of each user.
The feature rich pin marking brand that is the standard for the aerospace industry with autosense features, closed loop verification and validation. Controller can be used in Embedded or Software modes with flexible connectivity methods to the many Enterprise Systems.

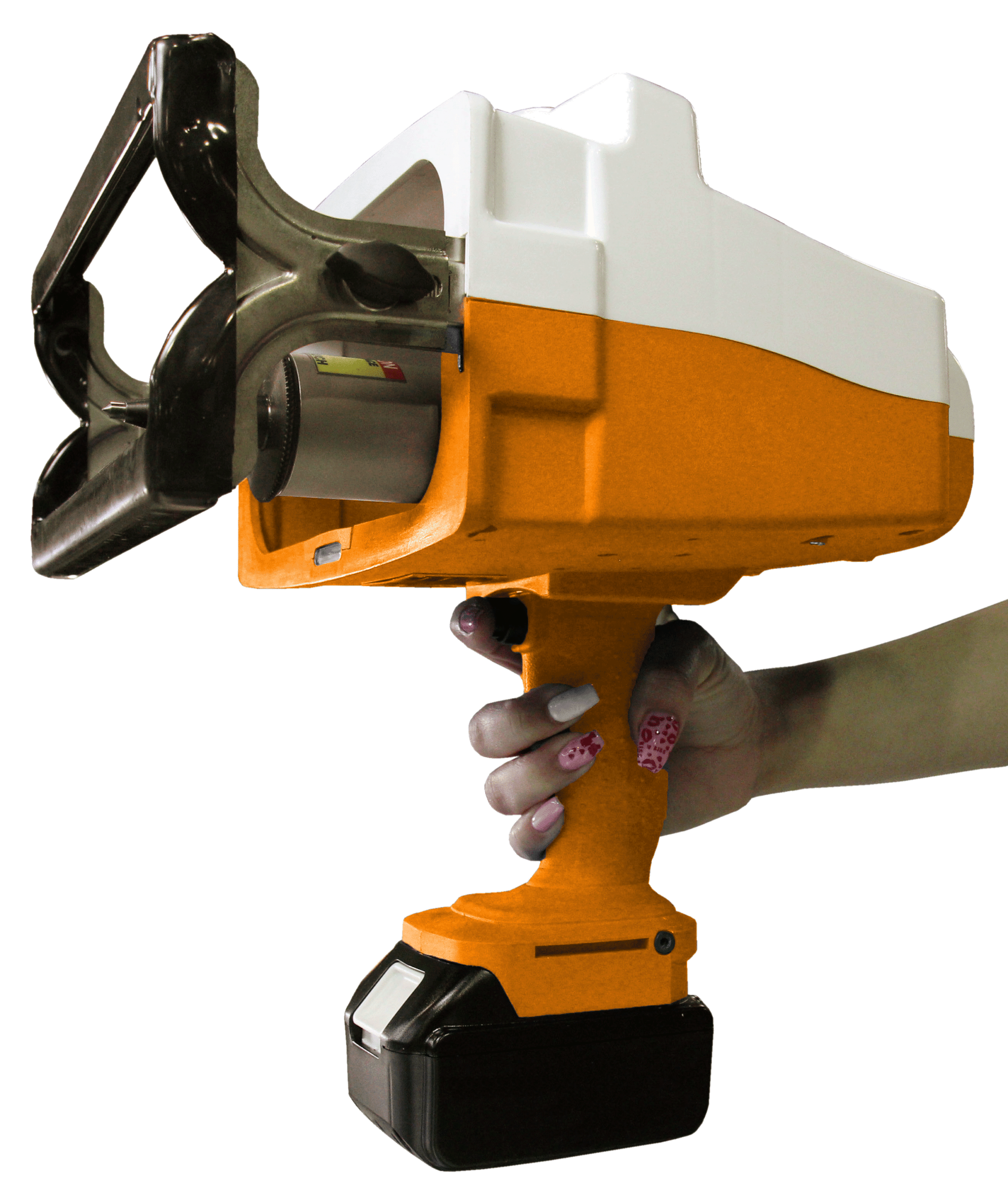

What is the marking window?
50mm x 30mm
How long is the battery life?
The battery will last up to 3 hours in lightweight mode.
What is the maximum depth?
Depth of the pin mark is dictated by the material being marked. However, you can expect .002″ in mild tool steel on force setting 5.
How fast is it?
The hand held Monode marker is one of the fastest pin markers available today. Its variable marking speed can be changed per file to help fit the needs of your production.
What is the smallest text I can mark?
A good rule of thumb is 1mm and higher. Ultimately, minimum text size depends on the substrate and the force used in marking. The The software allows for any variance in size, and the window and the pin size are additional factors.
Can the hand held Monode mark logos?
Yes, it can mark 2D data matrix bar codes.
Can I use a scanner to input a barcode?
Yes, the app has a built-in scanner.
What graphic files are supported?
The hand held uses “.plt” files which are vector graphic plotter files.
How much does it weigh?
3.5 kg
What mobile operating systems are supported?
The software runs on both Android and Apple iOS.
What software does it run? Where do I get it?
The software is available on both Google Play and Apple’s App Store.
Can it mark round parts?
Yes, you can mark with radial text to mark on a radius, and you can use the inside part of the boot on the marker to fit on a round of a part to mark.
Are replacement parts available?
Yes, Monode offers replacement parts and full service and support.
What comes with the Monode Hand held marker?
Monode hand held marker, carrying case, 2 batteries, 1 charger, marking bar accessory and strap.
What is the warranty?
The Monode hand held marker has a 1-year warranty.
