Pryor Column Mounted Pin Markers

Home Systems Dot Peen Marking Column Mounted Pryor

Pryor column mounted dot peen markers are highly-versatile and can be easily adapted to suit a wide variety of part configurations. The standard configuration consists of X, Y and Z axes, and a 4th circumferential axis is sometimes employed.

Low Volume / Low Throughput Dot Peen Machines

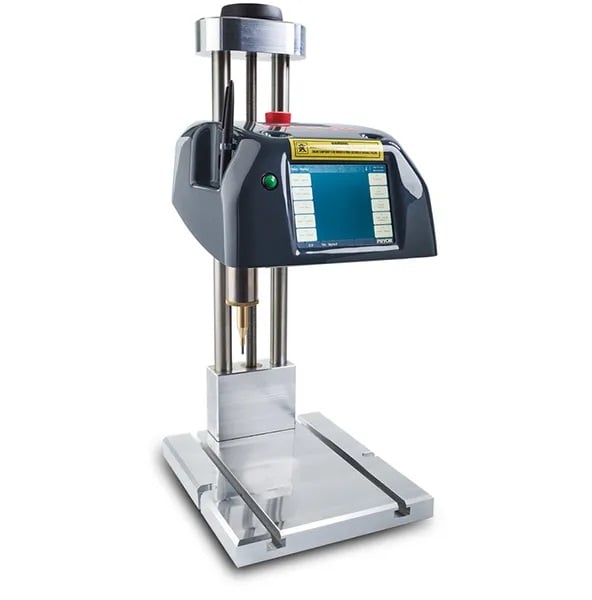

Low Volume / Low Throughput Dot Peen Marker

Pryor's quiet and fast pin markers are available as either USB-based or embedded LCD. Both have the same 100 x 75 mm marking area. Features include:

  • Stepper motor-driven X & Y axis and adjustable Z axis allows multiple height components to be marked.
  • Programmable electric solenoid with nine depth settings.
  • 240v/110v single phase supply – no pneumatics required.
  • Low running costs and virtually no consumable costs.
  • Advanced operating software with standard features including serial numbering, passwords, arc marking, and time/date marking.
  • Standard character sizes: 0.18 - 99.9 mm in increments of 0.18 mm.
  • Marking formed: 5 x 7, 7 x 9, Varidot, HPGL, BMP Logos.
  • Marking speed: Variable, depending on application.

High Volume / High Throughput Dot Peen Machines

High Volume / High Throughput Dot Peen Marker
High Volume / High Throughput Dot Peen Marker with Machine Vision

Five different styles are available:

  • Manual Z axis
  • Powered Z axis with optional auto-touch off
  • Integrated machine vision
  • Pneumatic deep-marking assemblies
  • Light duty and medium duty scribe attachments
All Pryor machines are available in these standard sizes: 60 x 60 mm, 100 x 100 mm, 150 x 150 mm, and 300 x 150 mm. Features include:
  • Memory storage of up to 1350 marking programs.
  • 2x RS232 and digital I/O (8 in, 6 out) connectivity.
  • Industrial communication protocols.
  • PC option using Traceable-IT graphical software.
  • Durable integrated membrane keyboard with LCD linked function keys.
  • Very large embedded graphical display.
  • Full QWERTY integrated membrane keyboard with addition PS/2 port for external keyboards.
  • On-screen mark preview and trial-run features.
  • Advanced standard features include serial numbering, passwords, arc marking, time/date and logo marking.
  • Standard character sizes: 0.15 - 99.9 mm in increments of 0.15 mm.
  • Character formats and logos: 5 x 7, 7 x 9, Varidot, HPGL, BMP Logos.
  • Marking speed: Variable, depending on application.

Very Large Parts with Low Throughput

This style of dot peen marker is recommended when the marking window falls outside of the normal 1250 x 1030 mm area. They have all the standard and advanced options as the high volume / high throughput pin markers listed above.
